The Trans Smart 160 is a fully automatic 160 liters steam sterilizer has 6 pre-set programs for the most common sterilization processes for general purpose hospital use. The program cycles employ mechanical air removal with a series of vacuum/pressure pulses to effectively remove air for assured sterilization. The temperature range is from 121°C–135°C for effective sterilization of sterile goods.

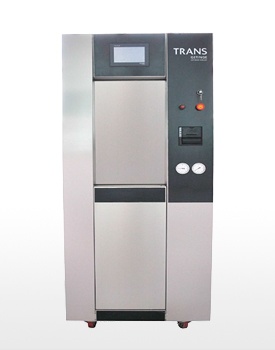

GETINGE TRANS 160 LITERS STEAM STERILIZER
The Trans Smart 160 is a fully automatic 160 liters steam sterilizer has 6 pre-set programs for the most common sterilization processes for general purpose hospital use. The program cycles employ mechanical air removal with a series of vacuum/pressure pulses to effectively remove air for assured sterilization. The temperature range is from 121°C–135°C for effective sterilization of sterile goods.
Features:
- Superior capacity-to-space ratio offering Superior capacity-to-space ratio offering high loading capacity with faster process times and greater throughput
- Robust design with chamber made of type AISI 316l/W.Nr.1.4404 stainless steel
- User-friendly HMI design includes a 7’’ Siemens PLC color for outstanding flexibility and operating simplicity for ease of use
APPLICATION
General-purpose steam sterilization of surgical instruments, textiles and hospital utensils in central sterilization departments, operation departments and laundries.
Measurements
Chamber volume (StE) : 2
Model : Double door, Single door
Door System: sliding door
Chamber Volume (lt) : 160
Exterior Body : AISI 304
Chamber Dimensions : 350 x 670 x 700 (wxhxl)
Outside Dimensions: 770 x 1950 x 1300 (wxhxl)
Standard Program
• 121 ºC Rubber
• 125 ºC Rubber
• 134 ºC Instrument
• 134 ºC Textile
• Bowie-Dick Test
• Leakage test
• Optional programs
